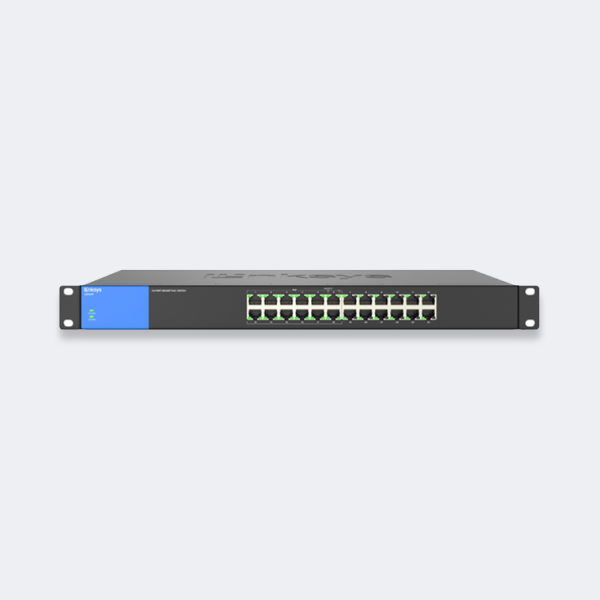

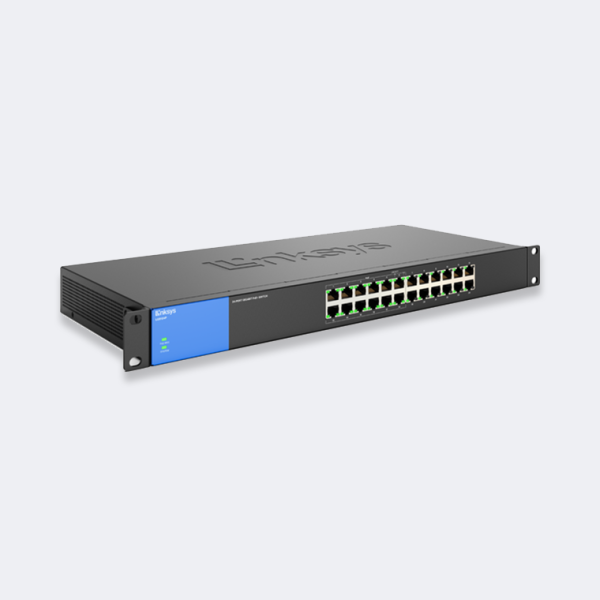

Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit PoE+ switches.
1. Wired connection speed up to 1,000 Mbps
2. 24 Gigabit Ethernet autosensing ports
3. Power over Ethernet Plus (PoE+) support
4. Easy plug & play connection
5. QoS
6. Meets EEE (Energy Efficient Ethernet) 802.3az standard
Power Consumption
7.79 W / 17.65 W
LEDs
Link, speed, activity, and PoE indicators
Dimensions (LxWxH)
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight
2.758 kg (6.08 lbs)
Minimum System Requirements
Connected devices need Ethernet connectivity and Ethernet cables.
Ports
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
Mounting
Rack
Power Input
100–240 VAC, 50/60 Hz
Quality Of Service
802.1p and DSCP
MAC Address Table Size
8,000 entries
Performance
1. 0.01488 Mpps for 10M port
2. 0.1488 Mpps for 100M port
3. 1.488 Mpps for 1000M port
Maximum Power Consumption
8.69 W / 19.27 W
Fans
One
Power Saving
Cable connected detection, sleep mode
Network Standards
1. 802.3at (PoE+)
2. IEEE 802.3
3. IEEE 802.3ab
4. IEEE 802.3af
5. IEEE 802.3az
6. IEEE 802.3u
7. IEEE 802.3x
Bandwidth
48 Gbps (non-blocking)
