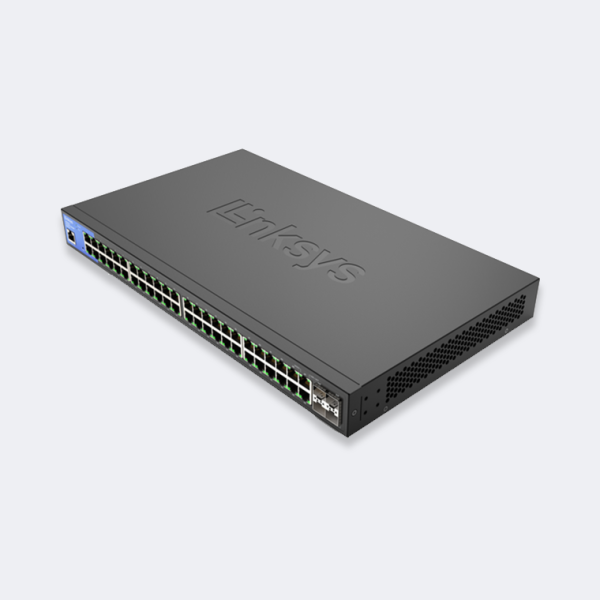

Designed for business-class management, security, speed, and quality of service with 48 Gigabit Ethernet ports and 4 10G SFP+ uplinks.
1. 10G SFP+ Uplink Ports (4)
2. Advanced Network Security and QoS
3. TAA Compliant
Specifications
Power Consumption
43.87W
LEDs
Power, Fault
VLAN
Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
512MB
Forwarding Rate
130.95 Mpps
Number of VLANs Supported
256 active VLANs (4,096 range)
Ports
1. 4 10G SFP+
2. 48 Gigabit Ethernet
Security Features
1. 802.1x Radius authentication
2. DHCP snooping
3. DOS Attack Prevention
4. IP-MAC binding
5. Port Isolation (Protected Ports)
6. Port Security (256 max entries per port)
Rate Limiting
Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
1. 1.5A
2. 100–240V
3. 50–60 Hz
Quality Of Service
1. 8 hardware queues
2. Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
3. Strict, Weighted Round Robin (WRR)
Warranty and Support
5 Year Warranty
MAC Address Table Size
32K
Switching Capacity
176 Gbps
HOL Blocking Prevention
Head of line (HOL) blocking prevention
Auto Voice VLAN
Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
Console Port, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
1. HTTP
2.HTTPS
Routing
Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
Fans
1, 8200 rpm (at full speed)
IGMP Snooping
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
EEE
Port Mirroring
Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
Web Browser (HTTP/HTTPS)
