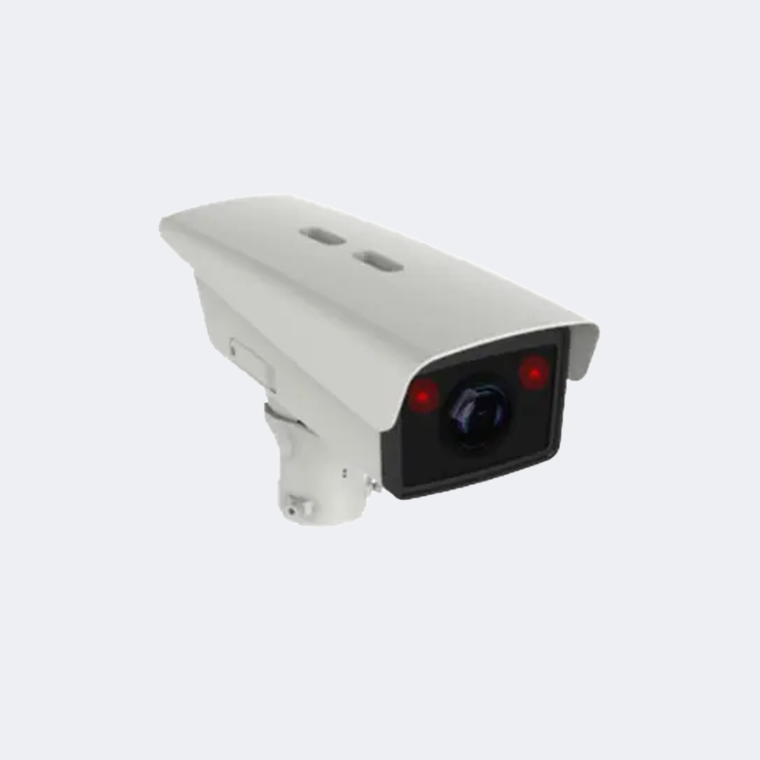

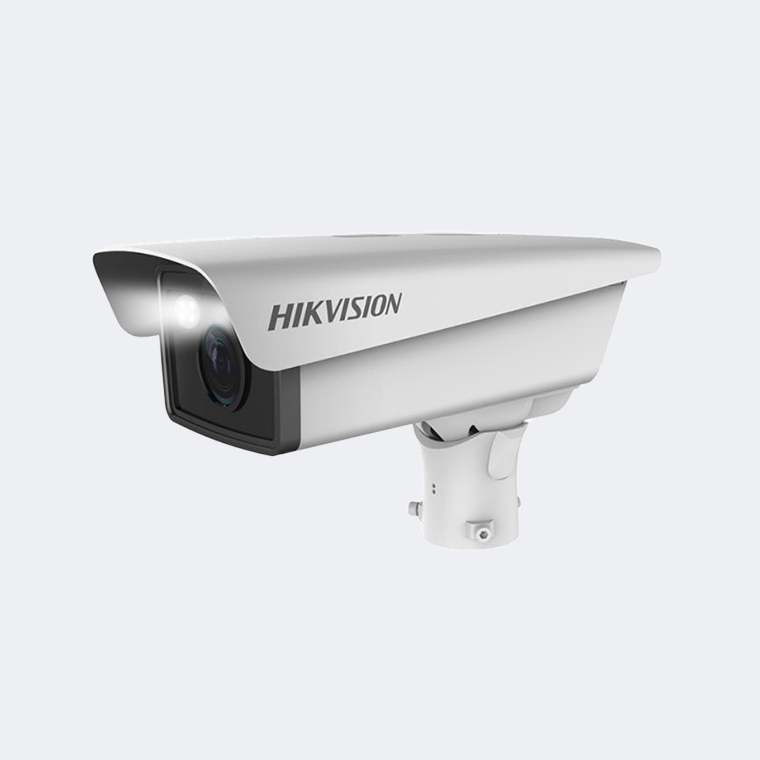

The DS-TCG405-E is a 4MP ANPR intelligent entrance video unit from Hikvision. It features a 3.1 to 6mm motorized vari-focal lens, 1/3″ Progressive Scan CMOS sensor, and supports relay output to control vehicle barrier. It also supports loop triggering or radar triggering. The DS-TCG405-E is designed for use in parking lot entrance and exit lanes, and other areas where vehicle access control is required.

Specifications:

1. Sensor type: 1/3″ Progressive Scan CMOS
2. Resolution: Up to 2688 × 1520
3. Frame rate: Up to 30fps
4. Lens: 3.1 to 6mm motorized vari-focal lens
5. LEDs: 2x pics high-performance LEDs (integrated white light and IR)
6. Triggering: Loop triggering or radar triggering
7. Relay output: Yes
8. Dimensions: 228.4 x 115.2 x 118.6 mm
9. Weight: 2.3 kg

Features:

1. High-resolution imaging: The DS-TCG405-E captures high-resolution images of vehicles, even in low-light conditions.
2. Accurate ANPR: The DS-TCG405-E uses Hikvision’s latest ANPR technology to accurately capture and recognize vehicle license plates.
3. Multiple triggering modes: The DS-TCG405-E can be triggered by loop detectors or radar sensors to ensure that vehicles are captured as they enter or exit the parking lot.
4. Relay output: The DS-TCG405-E can be used to control a vehicle barrier, ensuring that only authorized vehicles are allowed to enter the parking lot.
5. Weatherproof: The DS-TCG405-E is weatherproof and can be used in outdoor applications.

Applications:

1. Parking lot entrance and exit lanes
2. Other areas where vehicle access control is required

Benefits:

1. Improved security: The DS-TCG405-E can help to improve security by accurately capturing and recognizing vehicle license plates.
2. Reduced traffic congestion: The DS-TCG405-E can help to reduce traffic congestion by quickly and efficiently processing vehicles at parking lot entrances and exits.
3. Increased efficiency: The DS-TCG405-E can help to increase efficiency by automating the process of capturing and recognizing vehicle license plates.

Overall, the DS-TCG405-E is a versatile and powerful ANPR intelligent entrance video unit that can be used to improve security, reduce traffic congestion, and increase efficiency.
