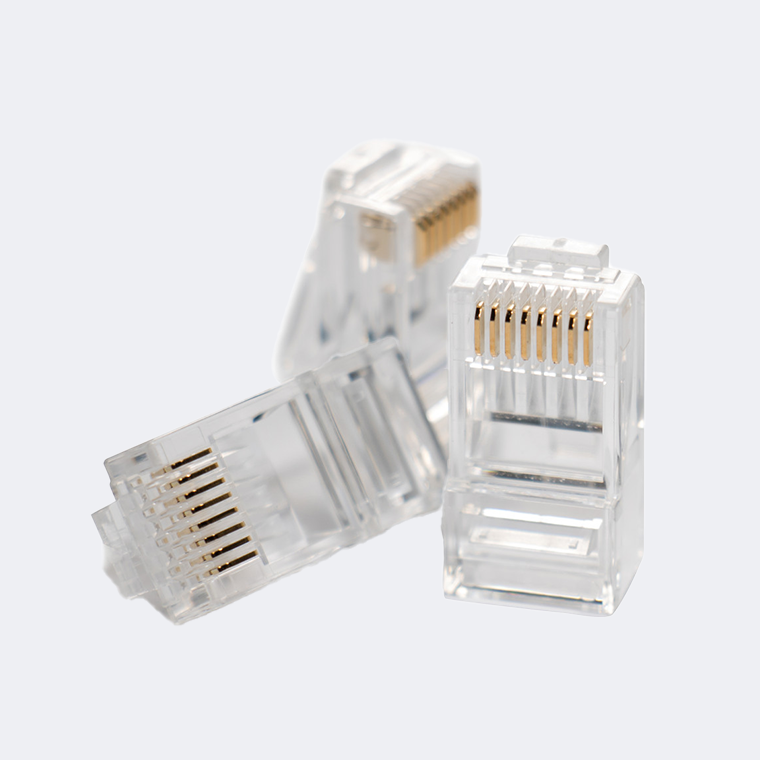

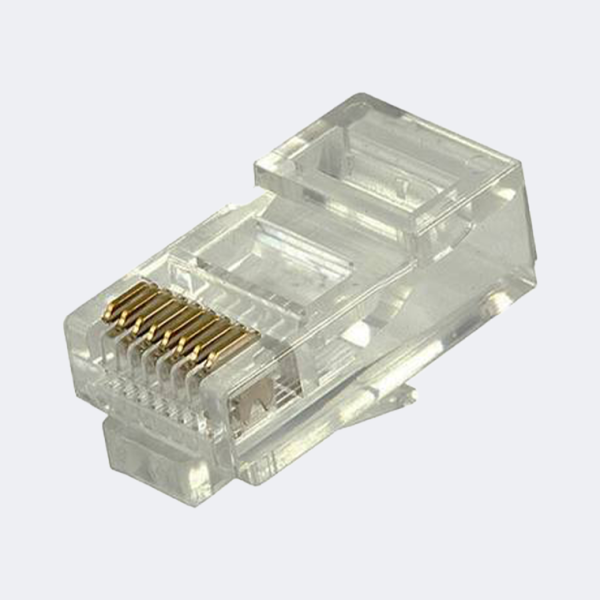

The HIKVISION DS-1M02 RJ45 Plug for CAT 6 is a high quality, reliable and affordable RJ45 connector that is designed for use with Cat 6 Ethernet cable. It is RoHS compliant and features 15u inch gold plated contacts for optimal conductivity, and supports 1000 Base-T Ethernet. It is also self-extinguishing UL94V-2 and has a tensile strength of 50N for 60s±5s.

Detailed Specifications

1. Material: Polycarbonate, UL94V-2
2. Contact Resistance: ≤20 mΩ
3. Insulation Resistance: ≥1000MΩ @ 100V DC
4. Withstand Voltage: 1KV AC RMS
5. Conductor: Copper alloy + 15u inch gold plating
6. Number of Pins: 8
7. Number of Conductors: 8
8. Operating Temperature: -25~55˚C
9. Storage Temperature: -10～40˚C
10. Relative Humidity: ＜80%

Detailed Features

1. High quality, reliable and affordable RJ45 connector
2. Designed for use with Cat 6 Ethernet cable
3. RoHS compliant
4. 15u inch gold plated contacts for optimal conductivity
5. Supports 1000 Base-T Ethernet
6. Self-extinguishing UL94V-2
7. Tensile strength of 50N for 60s±5s

Applications

1. Cat 6 Ethernet cable
2. Networking
