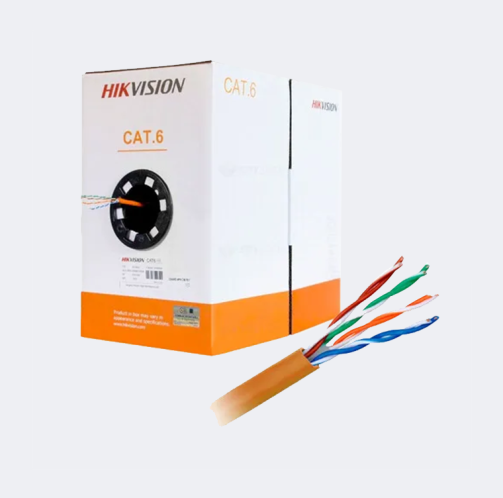

The Hikvision UTP Cable DS-ILN6U-W/CCA is a high-quality, 305-meter CAT6 UTP network cable that is ideal for use in a variety of applications, including Gigabit Ethernet, PoE, and video surveillance. It is made from CCA conductors and is Fluke verified for quality. This cable is also guaranteed to provide long PoE transmission distances.

Detailed Specifications

1. Cable Type: UTP
2. Category: CAT6
3. Conductor Material: CCA
4. Conductor Size: 0.565mm
5. Impedance: 100 ohms +/- 15 ohms (1.0-100.0MHz)
6. Delay Skew: ≤45 ns/100m
7. DC Resistance: ≤12 ohms/100m
8. Conductor Resistance Unbalance: ≤2%
9. Tensile Strength: ≥13.5 MPa
10. Elongation: ≥150%
11. Rip Cord: Yes
12. Drain Wire: No
13. Sheath Material: PVC
14. Sheath Color: White
15. Operating Temperature: -20°C to +70°C
16. Storage Temperature: -40°C to +80°C
17. Humidity: 0% to 90% (non-condensing)
18. Flame Retardant: UL/CSA CM

Detailed Features

1. High-quality CCA conductors for optimal performance
2. Fluke verified for quality
3. Guaranteed long PoE transmission distances
4. Suitable for Gigabit Ethernet, PoE, and video surveillance applications
5. Durable PVC sheath for long-lasting use
6. Easy to install and terminate

Applications

1. Gigabit Ethernet
2. PoE
3. Video Surveillance
4. Home Networking
5. Office Networking
6. Data Centers
